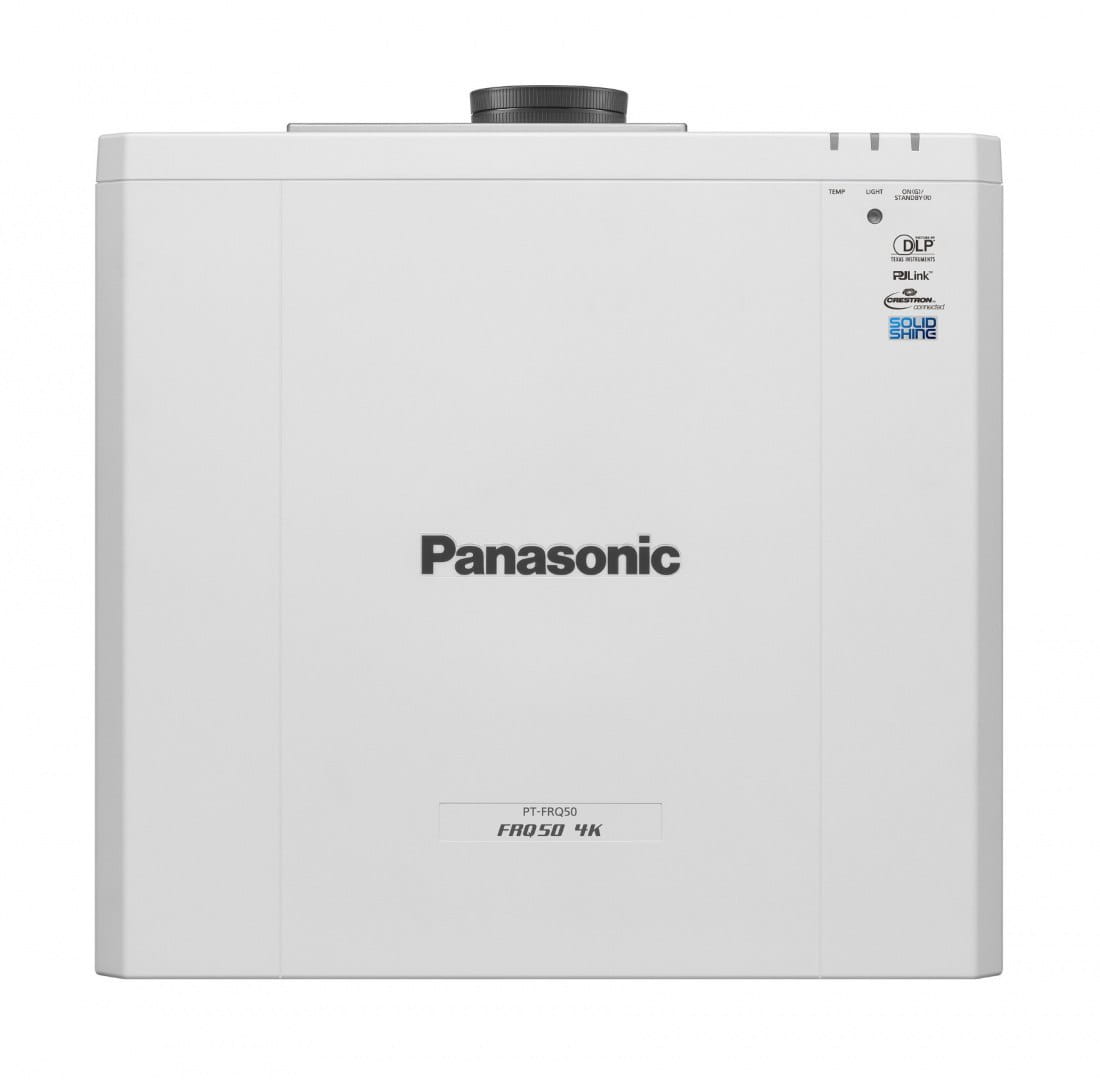

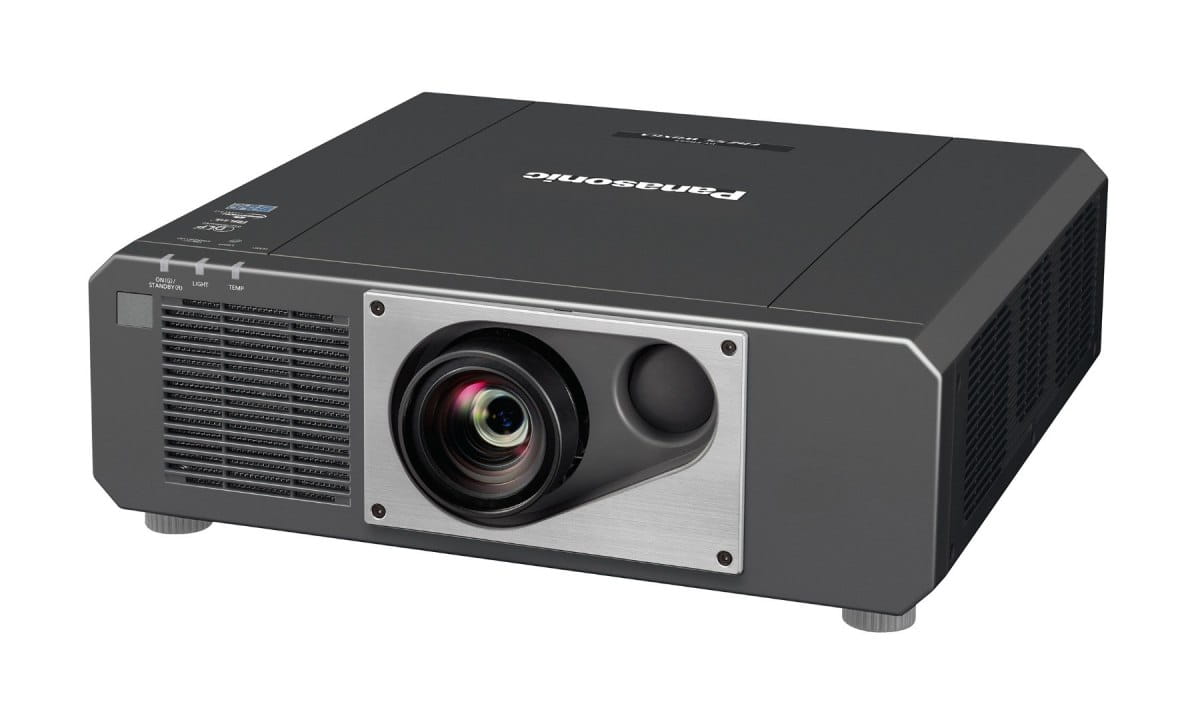

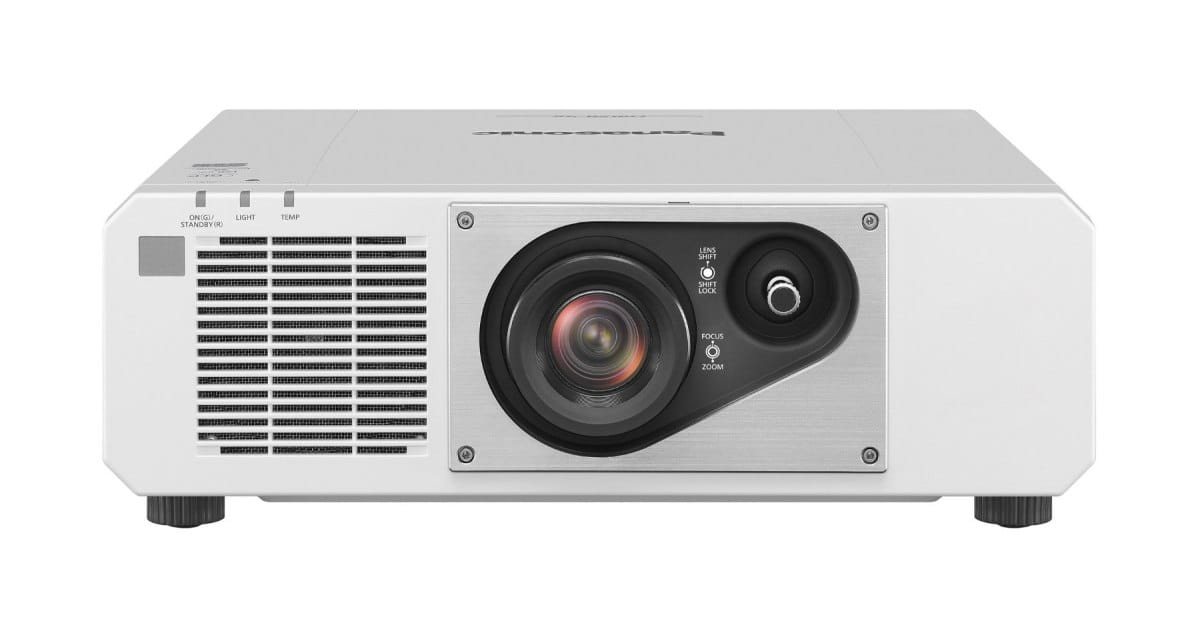

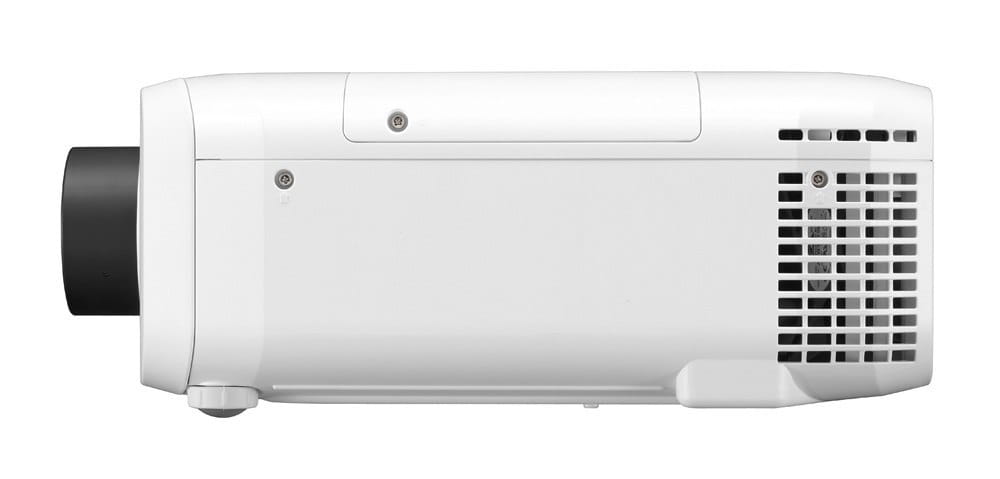

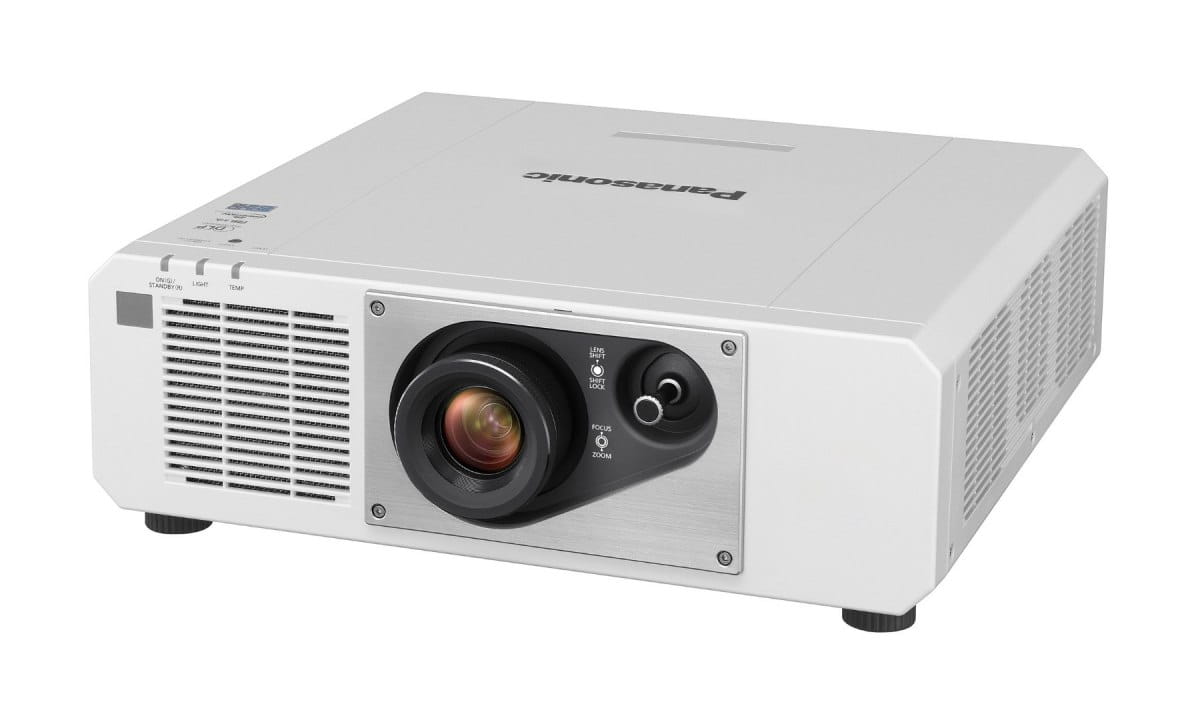

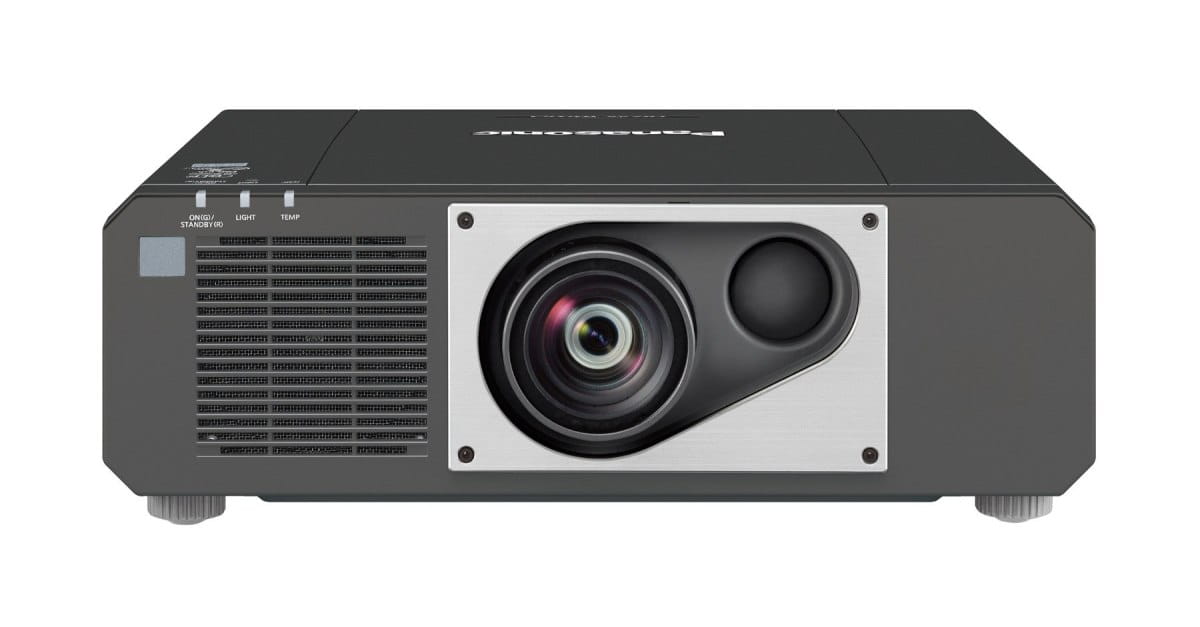

Projektor Panasonic PT-FRQ50BEJ / PT-FRQ50WEJ

Projektor PT-FRQ50 1-Chip DLP™ 4K o jasności 5200 lm zapewnia płynne, szczegółowe obrazy zapewniające wnikliwe wrażenia wizualne

Specyfikacja techniczna:

• PROJECTOR TYPE :1-Chip DLP™ projector

DLP™ chip

• DLP™ CHIP : I Panel size 16.5 mm (0.65 in) diagonal (16:9 aspect ratio)
• DLP™ CHIP I Display Method : DLP™ chip x 1, DLP™ projection system
• DLP™ CHIP I Number of pixels : 1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.)
• Light source : Laser diodes
• Light output : 5,200 lm
• Time until light output declines to 50 % :  20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
• Resolution :4K (3840 x 2160 pixels) (With Quad Pixel Drive)
• Contrast ratio : 20,000:1 (Full On/Full Off)
  (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input)
• Screen size (diagonal) : 1.02-7.62 m (40-300 in), 16:9 aspect ratio
• Center-to-corner zone ratio : 90 %
• Lens : 2.0x manual zoom (throw ratio: 1.46-2.93:1), manual focus, F 2.0-3.4, f 21.5-43.0 mm

LENS SHIFT (From the origin point of the lens mounter)


• Vertical : +71 %, -48 % (manual)
• Horizontal : +34 %, -27 % (manual)
• Keystone correction range : Vertical: ±40 °, Horizontal: ±20 °
• Installation : Ceiling/floor, front/rear, free 360-degree installation

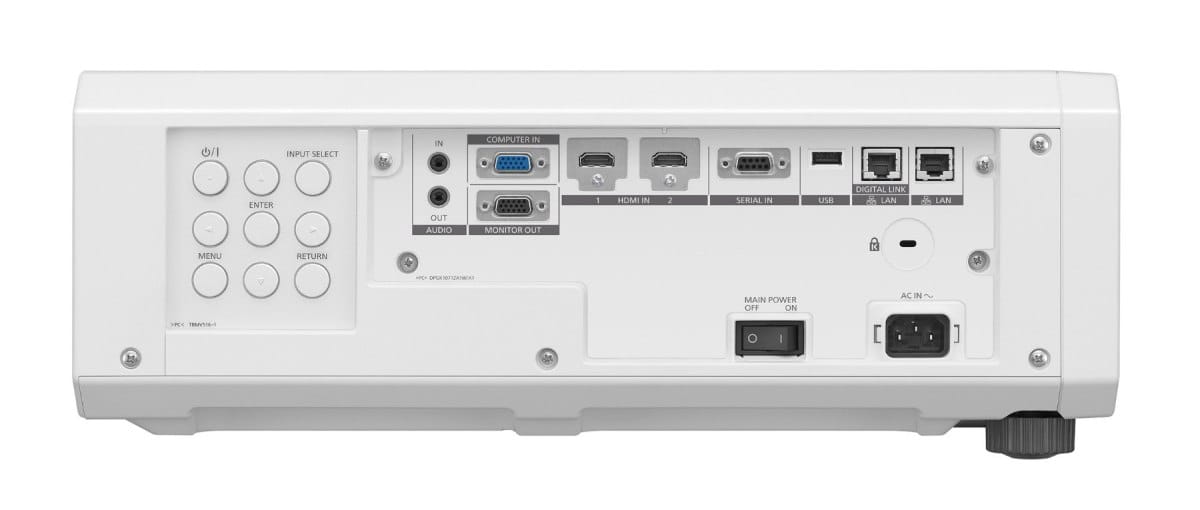

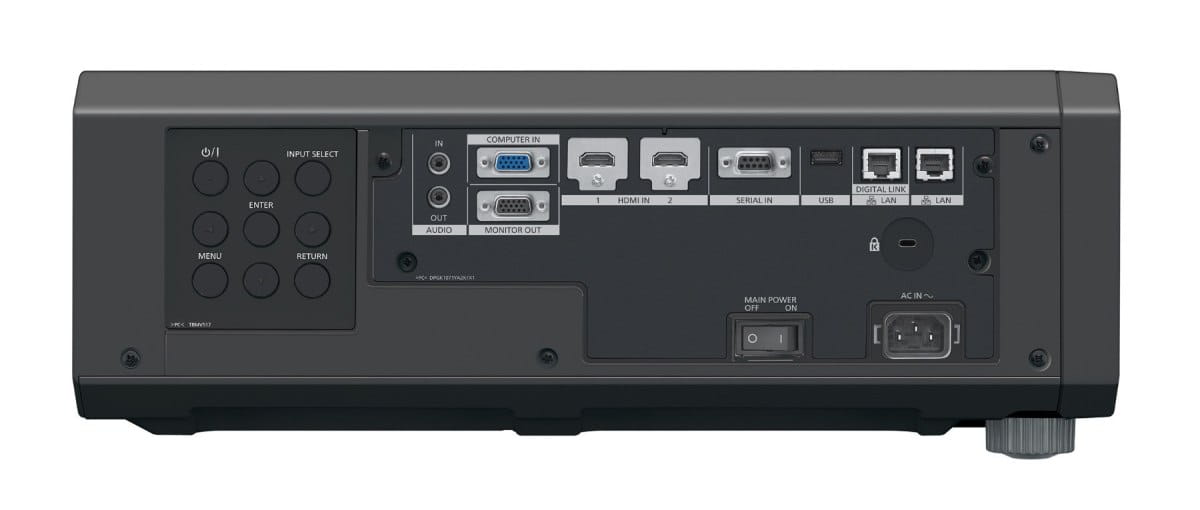

TERMINALS

• HDMI In : HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input*5), CEC supported
• Computer In : D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
• Computer In : D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
• Audio In/Out : M3 stereo mini-jack x 2
• Serial In : D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
• DIGITAL LINK/LAN : RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input)
• LAN : RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
• USB : USB Connector (Type A) x 1 (Output 5 V/2 A)

Others

• Power Supply : AC 100-240 V, 50/60 Hz
• Power consumption : 480 W
• Cabinet materials : Molded plastic
• Operation noise : 35 dB (NORMAL/ECO) / 28 dB (QUIET)
• Dimensions (W x H x D) : 498 x 168 x 492 mm (19 5/8˝ x 6 5/8˝ x 19 3/8˝ )
• Weight : Approx. 16.1 kg (35.5 lbs)
• Operating environment : Operating temperature: 0-45 °C (32-113 °F*9), operating humidity: 10-80 % (no condensation)
• Applicable software :Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro
